PRODUCT INTRODUCTION

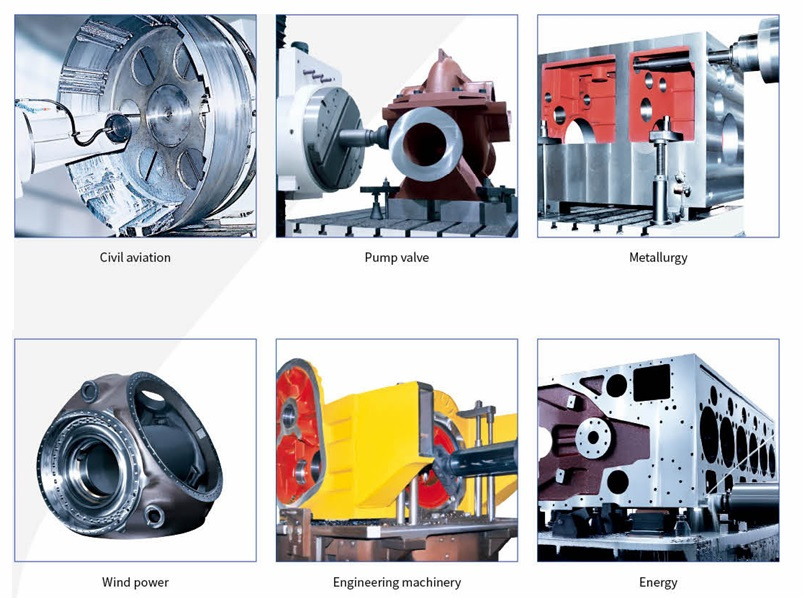

The product is a high-end CNC product which is developed for high requirements on axiality of abnormal wall hole on certain large/medium size workpieces, especially applies to machining of workpieces such as movable arm, bucket boom and gib arm in engineering machinery, and extremely enhances machining efficiency.

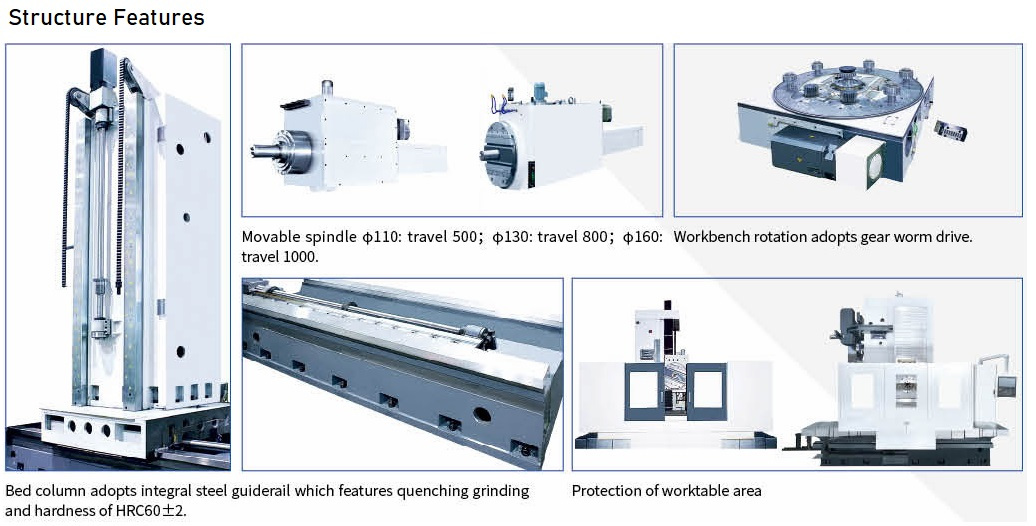

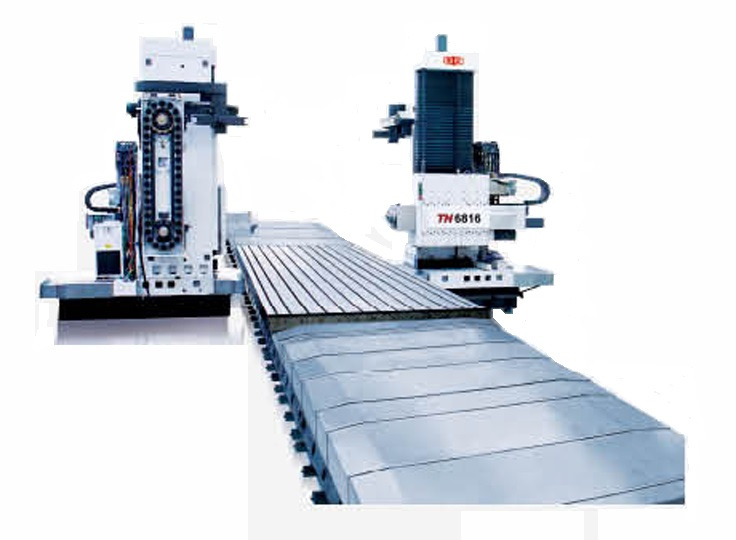

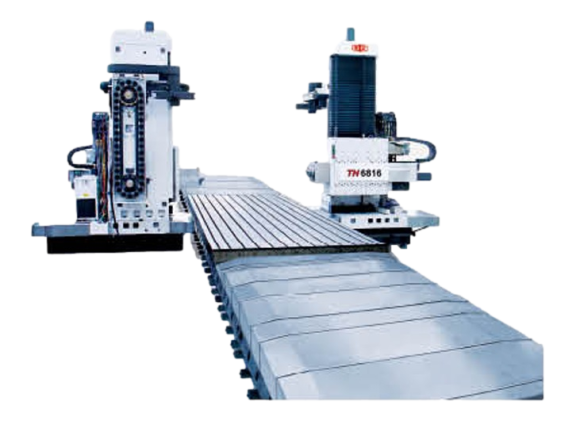

The product adopts side-to-side arrangement of two units of CNC horizontal boring and milling machine and workbench in middle. The workbench moves on transverse bed (X acis coordinate), lateral suspension headstock moves vertically along column guiderail (Y axis coordinate), two columns move on respective bed guiderail (Z axis coordinate), and spindle (boring shaft) moves in milling shaft (W axis coordinate)
